Rule Engine¶

EMQ X Rule Engine Introduction¶

Messages and events can be handled flexibly by the rule engine of EMQ X. Using the rule engine, it is convenient to implement such things as converting a message to a specified format, then saving it to a database table, or sending it to a message queue.

The concepts associated with the EMQ X rules engine include rule, action, resource, and resource-type.

Rule: Rule consists of SQL statements and action list. SQL statement is used to filter or transform data in events. An action is a task that is performed after a SQL statement is matched. The action list contains one or more actions and their parameters.
Action: Action defines an operation for data. Actions can be bound to resources or not. For example, the "inspect" action does not need to bind resources, but simply prints the data content and action parameters. The "data_to_webserver" action needs to bind a resource of type web_hook with a URL configured in it.
Resource: Resource is an object instantiated by a resource type as a template, and stores resource-related configurations (such as database connection address and port, user name, and password).
Resource Type: Resource type is a static definition of a resource that describes the configuration items required for this type of resource.

重要

Action and resource type are provided by the code of emqx or plugins and cannot be dynamically created through the API and CLI.

SQL Statement¶

SQL Syntax¶

SQL statement is used to filter out the fields from the original data according to the conditions and perform preprocessing and conversion. The basic format is:

SELECT <field name> FROM <trigger event> [WHERE <condition>]

FROM、SELECT and WHERE clause:

FROM clause mounts the rule to a trigger event, such as "message publish", "connection completed", "connection disconnected", etc.
SELECT clause is used to filter or convert fields in an event.
WHERE clause is used to filter events based on criteria.

SQL Statement Example:¶

Extract all fields from the message with topic "t/a":

SELECT * FROM "message.publish" WHERE topic = 't/a'

All fields extracted from message of 't/#' can be matched by topic. Note that the '=~' operator is used here for topic matching with wildcards:
```
SELECT * FROM "message.publish" WHERE topic =~ 't/#'
```
THe fields of qos，username and client_id extracted from message of 't/#' can be matched by topic:
```
SELECT qos, username, client_id FROM "message.publish" WHERE topic =~ 't/#'
```
Extract the username field from any topic message with the filter condition of username = 'Steven':
```
SELECT username FROM "message.publish" WHERE username='Steven'
```
Extract the x field from the payload of message with any topic and create the alias x for use in the WHERE clause. The WHERE clause is restricted as x = 1. Note that the payload must be in JSON format. Example: This SQL statement can match the payload {"x": 1}, but not to the payload {"x": 2}:
```
SELECT payload.x as x FROM "message.publish" WHERE x=1
```
Similar to the SQL statement above, but extract the data in the payload nestedly, and this SQL statement can match the payload {"x": {"y": 1}}:
```
SELECT payload.x.y as a FROM "message.publish" WHERE a=1
```
When client_id = 'c1' tries to connect, extract its source IP address and port number:
```
SELECT peername as ip_port FROM "client.connected" WHERE client_id = 'c1'
```
Filter all client_ids that subscribe to the 't/#' topic and subscription level is QoS1. Note that the strict equality operator '=' is used here, so it does not match subscription requests with the subject 't' or 't/+/a':
```
SELECT client_id FROM "client.subscribe" WHERE topic = 't/#' and qos = 1
```
In fact, the topic and qos fields in the above example are aliases that are set for ease of use when the subscription request contains only one pair (Topic, QoS). However, if the Topic Filters in the subscription request contain multiple (Topic, QoS) combination pairs, then the contains_topic() or contains_topic_match() function must be explicitly used to check if the Topic Filters contain the specified (Topic, QoS):
```
SELECT client_id FROM "client.subscribe" WHERE contains_topic(topic_filters, 't/#')

SELECT client_id FROM "client.subscribe" WHERE contains_topic(topic_filters, 't/#', 1)
```

重要

The trigger event after the FROM clause needs to be enclosed in double quotes "".
The WHERE clause is followed by the filter condition. If the string is used, it needs to be enclosed in single quotes ''.
In the SELECT clause, if the "." symbol is sed to nest the payload, the payload must be in JSON format.

Trigger Event Available for the FROM Clause¶

Event name	Interpretation
message.publish	Message publish
message.deliver	Message delivery
message.acked	Message acked
message.dropped	Message dropped
client.connected	Connect
client.disconnected	Disconnect
client.subscribe	Subscribe
client.unsubscribe	Unsubscribe

Fields Available for the SELECT Clause¶

The fields available to the SELECT clause are related to the type of trigger event, where client_id, username and event are common fields that is available for each event type .

message.publish¶

client_id	Client ID
username	User name
event	Fixed to "message.publish"
id	MQTT message ID
topic	MQTT topic
payload	MQTT payload
peername	Client IPAddress and Port
qos	MQTT message QoS
timestamp	Timestamp

message.deliver¶

client_id	Client ID
username	User name
event	Fixed to "message.deliver"
id	MQTT message ID
topic	MQTT topic
payload	MQTT payload
peername	Client IPAddress and Port
qos	MQTT message QoS
timestamp	Timestamp
auth_result	Authentication result
mountpoint	Message topic mountpoint

message.acked¶

client_id	Client ID
username	User name
event	Fixed to "message.acked"
id	MQTT message ID
topic	MQTT topic
payload	MQTT payload
peername	Client IPAddress and Port
qos	MQTT message QoS
timestamp	Timestamp

message.dropped¶

client_id	Client ID
username	User name
event	Fixed to "message.dropped"
id	MQTT message ID
topic	MQTT topic
payload	MQTT payload
peername	Client IPAddress and Port
qos	MQTT message QoS
timestamp	Timestamp
node	Node name

client.connected¶

client_id	Client ID
username	User name
event	Fixed to "client.connected"
auth_result	Authentication result
clean_start	MQTT clean start Flag position
connack	MQTT CONNACK result
connected_at	Connection timestamp
is_bridge	Bridge or not
keepalive	MQTT keepalive interval
mountpoint	Message topic mountpoint
peername	Client IPAddress and Port
proto_ver	MQTT Protocol version

client.disconnected¶

client_id	Client ID
username	User name
event	Fixed to "client.disconnected"
auth_result	Authentication result
mountpoint	Message topic mountpoint
peername	Client IPAddress and Port
reason_code	Reason code for disconnection

client.unsubscribe¶

client_id	Client ID
username	User name
event	Fixed to "client.unsubscribe"
auth_result	Authentication result
mountpoint	Message topic mountpoint
peername	Client IPAddress and Port
topic_filters	MQTT subscription list
topic	MQTT first topic of subscription list
QoS	MQTT first QoS of subscription list

Test SQL Statements in Dashboard¶

The Dashboard interface provides SQL statement testing capabilities to present SQL test results with given SQL statements and event parameters.

In the Rule Creation interface, enter Rules SQL and enable the SQL Test switch:

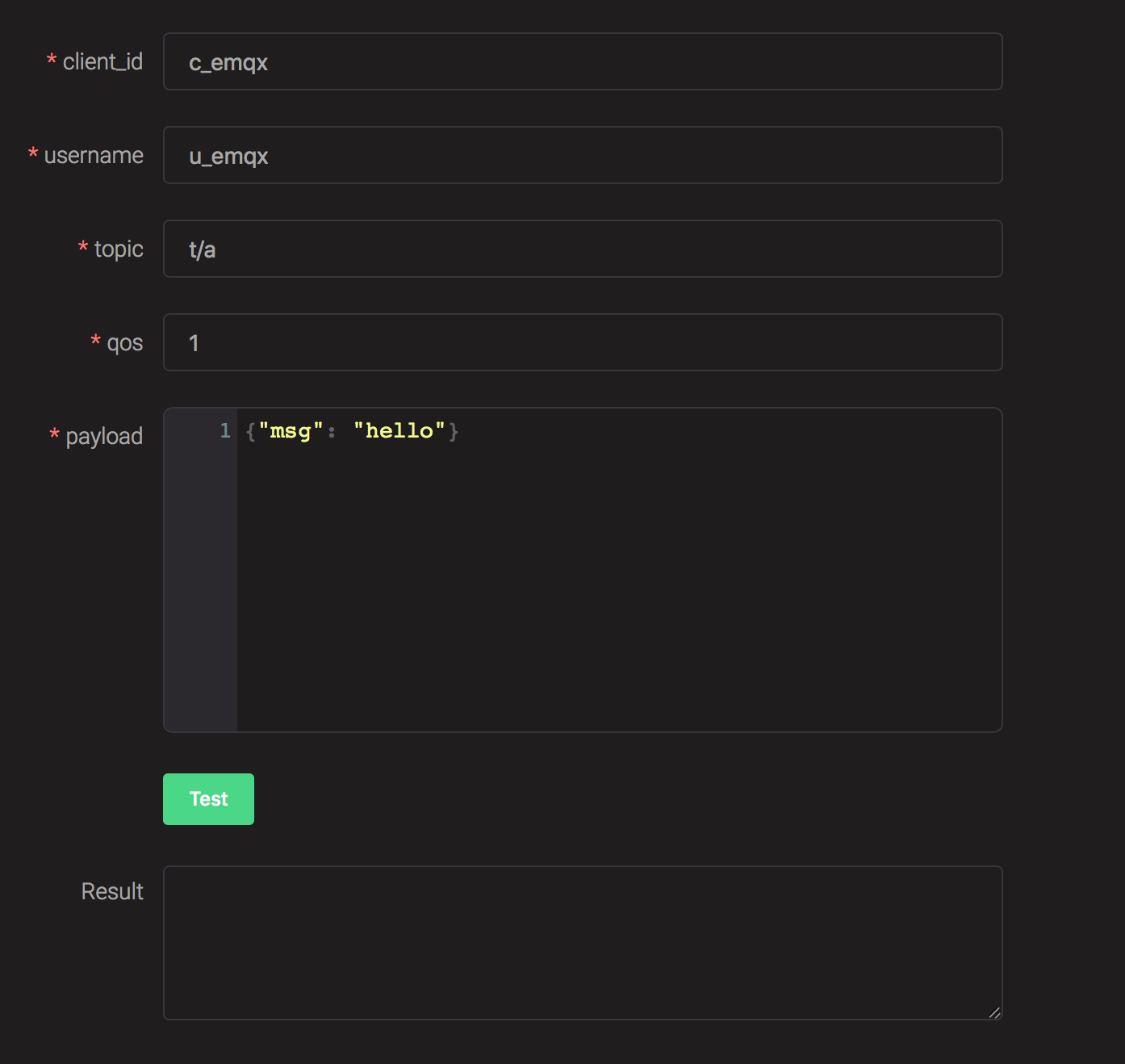

Modify the fields of the simulated event, or use the default configuration, click the Test button:

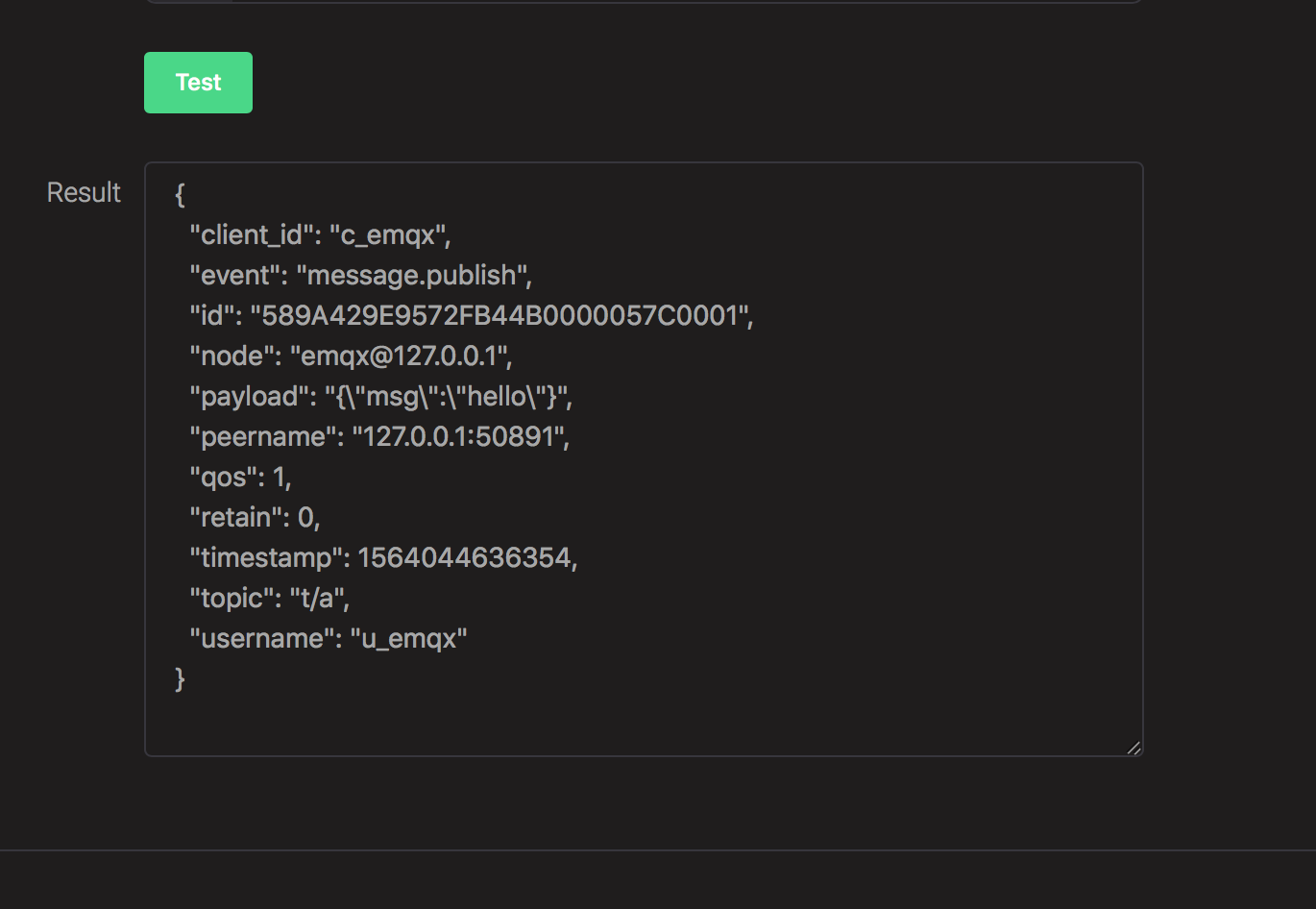

The processed results of the SQL will be displayed in the Test Output text box:

Rule Engine Management Commands and HTTP API¶

Rule Engine Command¶

Rules Command¶

rules list	List all rules
rules show <RuleId>	Show a rule
emqx_ctl rules create <sql> <actions> [-d [<descr>]]	Create a rule
rules delete <RuleId>	Delete a rule

rules create¶

Create a new rule. The parameters are as follows:

<sql>: rule SQL
<actions>: Action list in JSON format
-d <descr>: Optional, rule description information

Example:

## Create a test rule that simply prints all message content sent to the 't/a' topic
$ ./bin/emqx_ctl rules create \
  'select * from "message.publish"' \
  '[{"name":"inspect", "params": {"a": 1}}]' \
  -d 'Rule for debug'

Rule rule:9a6a725d created

The above example creates a rule with the ID rule:9a6a725d. There is only one action in the action list whose name is inspect, and the action parameter is {"a": 1}.

rules list¶

List all current rules:

$ ./bin/emqx_ctl rules list

rule(id='rule:9a6a725d', for='['message.publish']', rawsql='select * from "message.publish"', actions=[{"metrics":...,"name":"inspect","params":...}], metrics=..., enabled='true', description='Rule for debug')

rules show¶

Query rule:

## Query the rule with RuleID 'rule:9a6a725d'
$ ./bin/emqx_ctl rules show 'rule:9a6a725d'

rule(id='rule:9a6a725d', for='['message.publish']', rawsql='select * from "message.publish"', actions=[{"metrics":...,"name":"inspect","params":...}], metrics=..., enabled='true', description='Rule for debug')

rules delete¶

Delete rule:

## Delete rule with RuleID 'rule:9a6a725d'
$ ./bin/emqx_ctl rules delete 'rule:9a6a725d'

ok

Rule Actions Command¶

rule-actions list [-k [<eventype>]]	List actions
rule-actions show <ActionId>	Show a rule action

注解

Actions can be built in by emqx (called system built-in actions) or written by the emqx plugin, but they cannot be added or removed via the CLI/API.

rule-actions show¶

Query action:

## Query the action named 'inspect'
$ ./bin/emqx_ctl rule-actions show 'inspect'

action(name='inspect', app='emqx_rule_engine', for='$any', types=[], title ='Inspect (debug)', description='Inspect the details of action params for debug purpose')

rule-actions list¶

List eligible actions:

## List all current actions
$ ./bin/emqx_ctl rule-actions list

action(name='data_to_rabbit', app='emqx_bridge_rabbit', for='$any', types=[bridge_rabbit], title ='Data bridge to RabbitMQ', description='Store Data to Kafka')
action(name='data_to_timescaledb', app='emqx_backend_pgsql', for='$any', types=[timescaledb], title ='Data to TimescaleDB', description='Store data to TimescaleDB')
...

## List all actions that match the EventType type 'client.connected'
## '$any' indicates that this action can be bound to all types of events.
$ ./bin/emqx_ctl rule-actions list -k 'client.connected'

action(name='data_to_cassa', app='emqx_backend_cassa', for='$any', types=[backend_cassa], title ='Data to Cassandra', description='Store data to Cassandra')
action(name='data_to_dynamo', app='emqx_backend_dynamo', for='$any', types=[backend_dynamo], title ='Data to DynamoDB', description='Store Data to DynamoDB')
...

resources command¶

resources create <type> [-c [<config>]] [-d [<descr>]]	Create a resource
resources list [-t <ResourceType>]	List resources
resources show <ResourceId>	Show a resource
resources delete <ResourceId>	Delete a resource

resources create¶

Create a new resource with parameters as follows:

type: Resource Type
-c config: JSON format configuration
-d descr: Optional, description of the resource

$ ./bin/emqx_ctl resources create 'web_hook' -c '{"url": "http://host-name/chats"}' -d 'forward msgs to host-name/chats'

Resource resource:a7a38187 created

resources list¶

List all current resources:

$ ./bin/emqx_ctl resources list

resource(id='resource:a7a38187', type='web_hook', config=#{<<"url">> => <<"http://host-name/chats">>}, status=#{is_alive => false}, description='forward msgs to host-name/chats')

resources list by type¶

List all current resources:

$ ./bin/emqx_ctl resources list --type='web_hook'

resource(id='resource:a7a38187', type='web_hook', config=#{<<"url">> => <<"http://host-name/chats">>}, status=#{is_alive => false}, description='forward msgs to host-name/chats')

resources show¶

Query resource:

$ ./bin/emqx_ctl resources show 'resource:a7a38187'

resource(id='resource:a7a38187', type='web_hook', config=#{<<"url">> => <<"http://host-name/chats">>}, status=#{is_alive => false}, description='forward msgs to host-name/chats')

resources delete¶

Delete resource:

$ ./bin/emqx_ctl resources delete 'resource:a7a38187'

ok

resource-types command¶

resource-types list	List all resource-types
resource-types show <Type>	Show a resource-type

注解

Resource types can be built in by emqx (called system built-in resource types) or written by the emqx plugin, but cannot be added or removed via the CLI/API.

resource-types list¶

List all current resource types:

./bin/emqx_ctl resource-types list

resource_type(name='backend_mongo_rs', provider='emqx_backend_mongo', title ='MongoDB Replica Set Mode', description='MongoDB Replica Set Mode')
resource_type(name='backend_cassa', provider='emqx_backend_cassa', title ='Cassandra', description='Cassandra Database')
...

resource-types show¶

Query resource type:

$ ./bin/emqx_ctl resource-types show backend_mysql

resource_type(name='backend_mysql', provider='emqx_backend_mysql', title ='MySQL', description='MySQL Database')

Rule Engine HTTP API¶

Rule API¶

Create rule¶

API definition:

POST api/v3/rules

Parameter definition:

rawsql	String，SQL statement for filtering and converting raw data
actions	JSON Array，action list
actions.name	String, action name
actions.params	JSON Object, action parameter
description	String，optional, rule description

API request example:

GET http://localhost:8080/api/v3/rules

API request payload:

{
  "rawsql": "select * from \"message.publish\"",
  "actions": [{
      "name": "inspect",
      "params": {
          "a": 1
      }
  }],
  "description": "test-rule"
}

API returned data example:

{
  "code": 0,
  "data": {
      "actions": [{
          "name": "inspect",
          "params": {
              "a": 1
          }
      }],
      "description": "test-rule",
      "enabled": true,
      "for": "message.publish",
      "id": "rule:34476883",
      "rawsql": "select * from \"message.publish\""
  }
}

Query rule¶

API definition:

GET api/v3/rules/:id

API request example:

GET api/v3/rules/rule:34476883

API returned data example:

{
  "code": 0,
  "data": {
      "actions": [{
          "name": "inspect",
          "params": {
              "a": 1
          }
      }],
      "description": "test-rule",
      "enabled": true,
      "for": "message.publish",
      "id": "rule:34476883",
      "rawsql": "select * from \"message.publish\""
  }
}

Get the current rule list¶

API definition:

GET api/v3/rules

API returned data example:

{
  "code": 0,
  "data": [{
      "actions": [{
          "name": "inspect",
          "params": {
              "a": 1
          }
      }],
      "description": "test-rule",
      "enabled": true,
      "for": "message.publish",
      "id": "rule:34476883",
      "rawsql": "select * from \"message.publish\""
  }]
}

Delete rule¶

API definition:

DELETE api/v3/rules/:id

Request parameter example:

DELETE api/v3/rules/rule:34476883

API returned data example:

{
  "code": 0
}

Action API¶

Get the current action list¶

API definition:

GET api/v3/actions?for=${hook_type}

API request example:

GET api/v3/actions

API returned data example:

{
  "code": 0,
  "data": [{
      "app": "emqx_rule_engine",
      "description": "Republish a MQTT message to another topic",
      "for": "message.publish",
      "name": "republish",
      "params": {
          "target_topic": {
              "description": "To which topic the message will be republished",
              "format": "topic",
              "required": true,
              "title": "To Which Topic",
              "type": "string"
          }
      },
      "types": []
  }]
}

API request example:

GET 'api/v3/actions?for=client.connected'

API returned data example:

{
  "code": 0,
  "data": [{
      "app": "emqx_rule_engine",
      "description": "Inspect the details of action params for debug purpose",
      "for": "$any",
      "name": "inspect",
      "params": {},
      "types": []
  }]
}

Query action¶

API definition:

GET api/v3/actions/:action_name

API request example:

GET 'api/v3/actions/inspect'

API returned data example:

{
  "code": 0,
  "data": {
      "app": "emqx_rule_engine",
      "description": "Inspect the details of action params for debug purpose",
      "for": "$any",
      "name": "inspect",
      "params": {},
      "types": []
  }
}

Resource Type API¶

Get the current resource type list¶

API definition:

GET api/v3/resource_types

Returned data example:

{
  "code": 0,
  "data": [{
      "config": {
          "url": "http://host-name/chats"
      },
      "description": "forward msgs to host-name/chats",
      "id": "resource:a7a38187",
      "type": "web_hook"
  }]
}

Query resource type¶

API definition:

GET api/v3/resource_types/:type

Returned data example:

GET api/v3/resource_types/web_hook

{
  "code": 0,
  "data": {
      "description": "WebHook",
      "name": "web_hook",
      "params": {},
      "provider": "emqx_web_hook"
  }
}

Get certain kind of resource¶

API definition:

GET api/v3/resource_types/:type/resources

API request example:

GET api/v3/resource_types/web_hook/resources

API returned data example:

{
  "code": 0,
  "data": [{
      "config": {"url":"http://host-name/chats"},
      "description": "forward msgs to host-name/chats",
      "id": "resource:6612f20a",
      "type": "web_hook"
  }]
}

Resource API¶

Create resource¶

API definition:

POST api/v3/resources

API parameter definition:

type	String, resource type
config	JSON Object, resource configuration
description	String，Optional, rule description

API request parameter example:

{
  "type": "web_hook",
  "config": {
      "url": "http://127.0.0.1:9910",
      "headers": {"token":"axfw34y235wrq234t4ersgw4t"},
      "method": "POST"
  },
  "description": "web hook resource-1"
}

API returned data example:

{
  "code": 0,
  "data": {
      "config": {
          "headers":{"token":"axfw34y235wrq234t4ersgw4t"},
          "method":"POST",
          "url":"http://127.0.0.1:9910"
      },
      "description": "web hook resource-1",
      "id": "resource:62763e19",
      "type": "web_hook"
  }
}

Get resource list¶

API definition:

GET api/v3/resources

API returned data example:

{
  "code": 0,
  "data": [{
      "config": {
          "headers":{"token":"axfw34y235wrq234t4ersgw4t"},
          "method":"POST",
          "url":"http://127.0.0.1:9910"
      },
      "description": "web hook resource-1",
      "id": "resource:62763e19",
      "type": "web_hook"
  }]
}

Query resource¶

API definition:

GET api/v3/resources/:resource_id

API returned data example:

GET 'api/v3/resources/resource:62763e19'

{
  "code": 0,
  "data": {
      "config": {
          "headers":{"token":"axfw34y235wrq234t4ersgw4t"},
          "method":"POST",
          "url":"http://127.0.0.1:9910"
      },
      "description": "web hook resource-1",
      "id": "resource:62763e19",
      "type": "web_hook"
  }
}

Delete resource¶

API definition:

DELETE api/v3/resources/:resource_id

API returned data example:

DELETE 'api/v3/resources/resource:62763e19'

{
  "code": 0
}

Example of Rule Creation¶

Create Database and Bridge Rules through the CLI¶

Create Inspect Rules

Create WebHook Rule

Create Database and Bridge Rules through DashBoard¶

Create MySQL Rules

Create PostgreSQL Rules

Create Cassandra Rules

Create MongoDB Rules

Create DynamoDB Rules

Create Redis Rules

Create OpenTSDB Rules

Create TimescaleDB Rules

Create InfluxDB Rules

Creat WebHook Rules

Create Kafka Rules

Create Pulsar Rules

Create RabbitMQ Rules

Create BridgeMQTT Rules

Create EMQX Bridge Rules

Rule Engine¶

EMQ X Rule Engine Introduction¶

SQL Statement¶

SQL Syntax¶

SQL Statement Example:¶

Trigger Event Available for the FROM Clause¶

Fields Available for the SELECT Clause¶

message.publish¶

message.deliver¶

message.acked¶

message.dropped¶

client.connected¶

client.disconnected¶

client.subscribe¶

client.unsubscribe¶

Test SQL Statements in Dashboard¶

Rule Engine Management Commands and HTTP API¶

Rule Engine Command¶

Rules Command¶

rules create¶

rules list¶

rules show¶

rules delete¶

Rule Actions Command¶

rule-actions show¶

rule-actions list¶

resources command¶

resources create¶

resources list¶

resources list by type¶

resources show¶

resources delete¶

resource-types command¶

resource-types list¶

resource-types show¶

Rule Engine HTTP API¶

Rule API¶

Create rule¶

Query rule¶

Get the current rule list¶

Delete rule¶

Action API¶

Get the current action list¶

Query action¶

Resource Type API¶

Get the current resource type list¶

Query resource type¶

Get certain kind of resource¶

Resource API¶

Create resource¶

Get resource list¶

Query resource¶

Delete resource¶

Status, Statistical Indicator, and Alerts Related to the Rules Engine¶

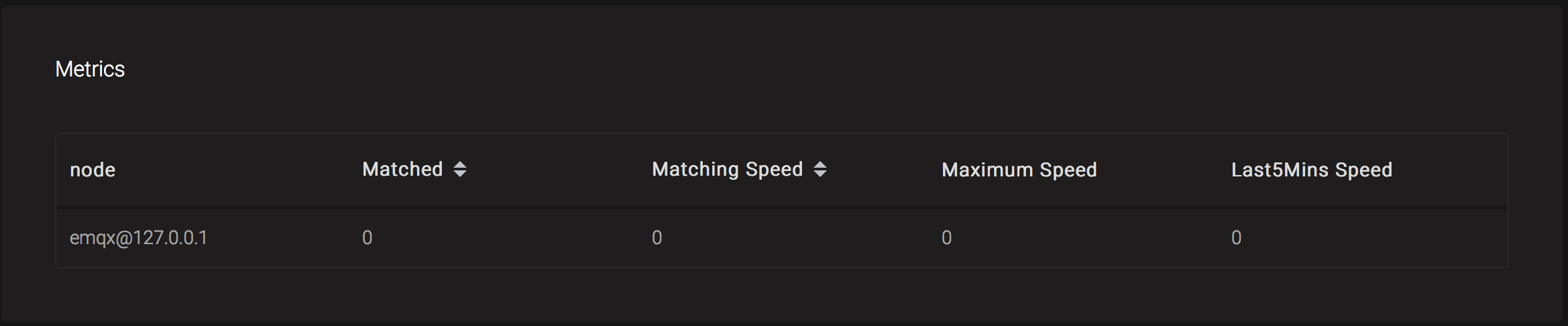

Rule Status and Statistical Indicators¶

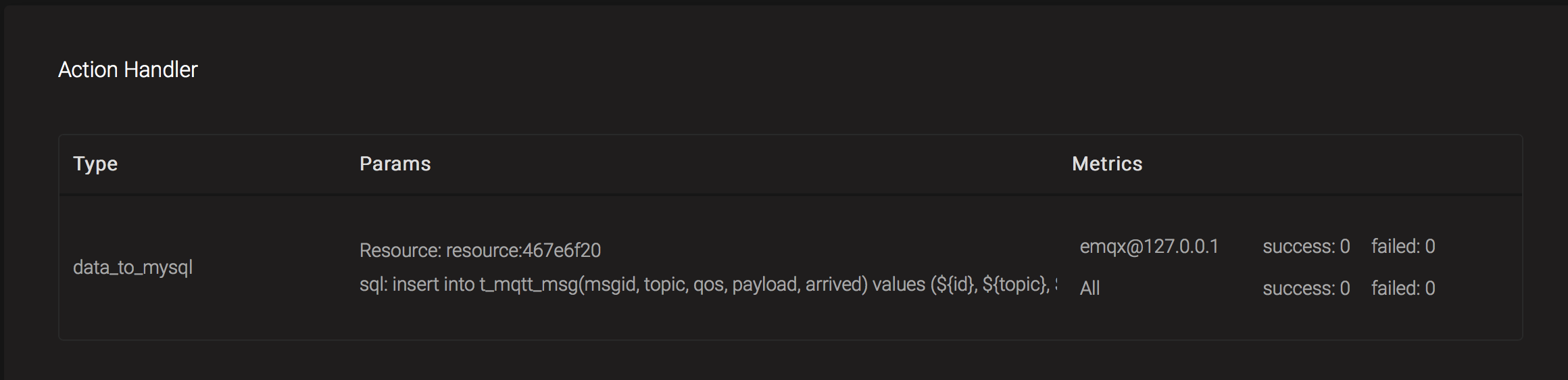

Action Status and Statistical Indicators¶

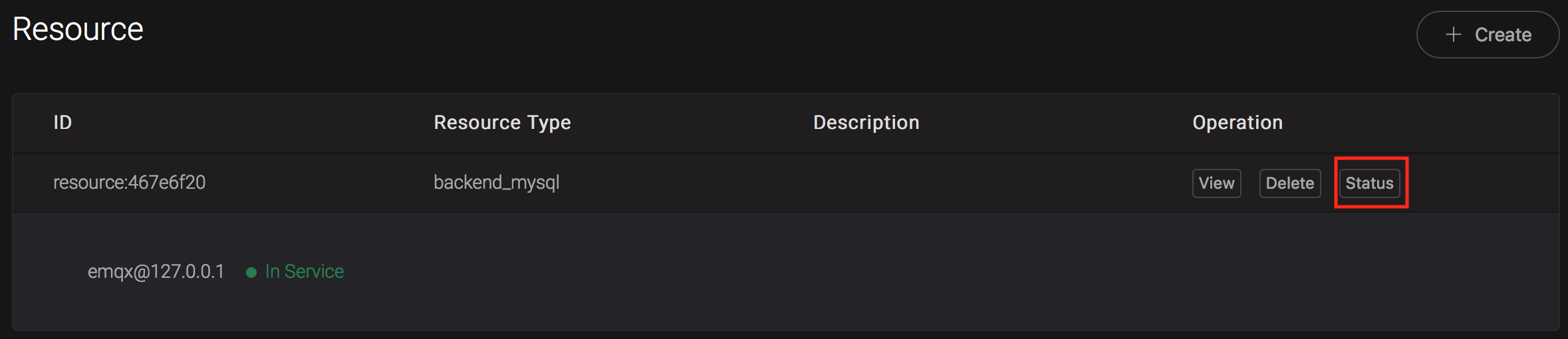

Resource Status and Alarm¶

Example of Rule Creation¶

Create Database and Bridge Rules through the CLI¶

Create Database and Bridge Rules through DashBoard¶
