AuthN/AuthZ¶

Design of MQTT Auth¶

EMQ X utilizes plugins to provide various Authentication mechanism. EMQ X supports username / password, ClientID and anonymous authentication. It also supports Auth integration with MySQL, PostgreSQL, Redis, MongoDB, HTTP, OpenLDAP and JWT.

Anonymous Auth is enabled by default. An Auth chain can be built of multiple Auth plugins:

Anonymous Auth¶

Anonymous Auth is the last validation of Auth chain. By default, it is enabled in file etc/emqx.conf. Recommended to disable it in production deployment:

## Allow Anonymous authentication
mqtt.allow_anonymous = true

Access Control List (ACL)¶

EMQ X Server utilizes Access Control List (ACL) to realize the access control upon clients.

ACL defines:

Allow|Deny Whom Subscribe|Publish Topics

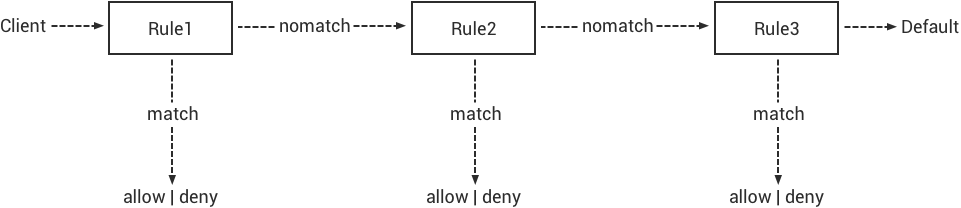

When MQTT clients subscribe to topics or publish messages, the EMQ X access control module tries to check against all rules in the list till a first match. Otherwise it fallbacks to default routine if no match found:

Default Access Control File¶

The default access control of EMQ X server is configured by the file acl.conf:

## ACL nomatch
acl_nomatch = allow

## Default ACL File
acl_file = etc/acl.conf

## Whether to enable ACL cache.
enable_acl_cache = on

## The maximum count of ACL entries can be cached for a client.
acl_cache_max_size = 32

## The time after which an ACL cache entry will be deleted
acl_cache_ttl = 1m

## The action when acl check reject current operation
acl_deny_action = ignore

ACL is defined in etc/acl.conf, and is loaded when EMQ X starts:

%% Allow 'dashboard' to subscribe '$SYS/#'
{allow, {user, "dashboard"}, subscribe, ["$SYS/#"]}.

%% Allow clients from localhost to subscribe any topics
{allow, {ipaddr, "127.0.0.1"}, pubsub, ["$SYS/#", "#"]}.

%% Deny clients to subscribe '$SYS#' and '#'
{deny, all, subscribe, ["$SYS/#", {eq, "#"}]}.

%% Allow all
{allow, all}.

If ACL is modified, it can be reloaded using CLI:

$ ./bin/emqx_ctl acl reload

reload acl_internal successfully

List of AuthN/ACL Plugins¶

EMQ X supports integrated authentications by using ClientId, Username, HTTP, OpenLDAP, MySQL, Redis, PostgreSQL, MongoDB and JWT. Multiple Auth plugins can be loaded simultaneously to build an authentication chain.

The config files of Auth plugins are located in `/etc/emqx/plugins/`(RPM/DEB installation) or in `etc/plugins/`(standalone installation)

Auth Plugin	Config file	Description
emqx_auth_clientid	emqx_auth_clientid.conf	ClientId AuthN Plugin
emqx_auth_username	emqx_auth_username.conf	Username/Password AuthN Plugin
emqx_auth_ldap	emqx_auth_ldap.conf	OpenLDAP AuthN/AuthZ Plugin
emqx_auth_http	emqx_auth_http.conf	HTTP AuthN/AuthZ
emqx_auth_mysql	emqx_auth_redis.conf	MySQL AuthN/AuthZ
emqx_auth_pgsql	emqx_auth_mysql.conf	PostgreSQL AuthN/AuthZ
emqx_auth_redis	emqx_auth_pgsql.conf	Redis AuthN/AuthZ
emqx_auth_mongo	emqx_auth_mongo.conf	MongoDB AuthN/AuthZ
emqx_auth_jwt	emqx_auth_jwt.conf	JWT AuthN/AuthZ

ClientID Auth Plugin¶

Configure the password hash in the emqx_auth_clientid.conf:

## Default usernames Examples
##auth.client.1.clientid = id
##auth.client.1.password = passwd
##auth.client.2.clientid = dev:devid
##auth.client.2.password = passwd2
##auth.client.3.clientid = app:appid
##auth.client.3.password = passwd3
##auth.client.4.clientid = client~!@#$%^&*()_+
##auth.client.4.password = passwd~!@#$%^&*()_+
## Password hash: plain | md5 | sha | sha256
auth.client.password_hash = sha256

Load ClientId Auth plugin:

./bin/emqx_ctl plugins load emqx_auth_clientid

After the plugin is loaded, there are two possible ways to add users:

Use the './bin/emqx_ctl' CLI tool to add clients:

$ ./bin/emqx_ctl clientid add <ClientId> <Password>

Use the HTTP API to add clients:

POST api/v3/auth_clientid
{
    "clientid": "clientid",
    "password": "password"
}

Username/Passwordd Auth Plugin¶

Configure the password hash in the emqx_auth_username.conf:

## Default usernames Examples:
##auth.user.1.username = admin
##auth.user.1.password = public
##auth.user.2.username = feng@emqtt.io
##auth.user.2.password = public
##auth.user.3.username = name~!@#$%^&*()_+
##auth.user.3.password = pwsswd~!@#$%^&*()_+
## Password hash: plain | md5 | sha | sha256
auth.user.password_hash = sha256

Load Username Auth plugin:

./bin/emqx_ctl plugins load emqx_auth_username

After the plugin is loaded, there are two possible ways to add users:

Use the './bin/emqx_ctl' CLI tool to add users:

$ ./bin/emqx_ctl users add <Username> <Password>

Use the HTTP API to add users:

POST api/v3/auth_username
{
    "username": "username",
    "password": "password"
}

OpenLDAP Auth Plugin¶

Configure the OpenLDAP Auth Plugin in the emqx_auth_ldap.conf:

## OpenLDAP servers list
auth.ldap.servers = 127.0.0.1

## OpenLDAP server port
auth.ldap.port = 389

## OpenLDAP pool size
auth.ldap.pool = 8

## OpenLDAP Bind DN
auth.ldap.bind_dn = cn=root,dc=emqx,dc=io

## OpenLDAP Bind Password
auth.ldap.bind_password = public

## OpenLDAP query timeout
auth.ldap.timeout = 30s

## OpenLDAP Device DN
auth.ldap.device_dn = ou=device,dc=emqx,dc=io

## Specified ObjectClass
auth.ldap.match_objectclass = mqttUser

## attributetype for username
auth.ldap.username.attributetype = uid

## attributetype for password
auth.ldap.password.attributetype = userPassword

## Whether to enable SSL
auth.ldap.ssl = false

Load the OpenLDAP Auth plugin:

./bin/emqx_ctl plugins load emqx_auth_ldap

HTTP Auth/ACL Plugin¶

Configure the HTTP Auth/ACL Plugin in the emqx_auth_http.conf:

## Time-out time for the http request, 0 is never timeout
## auth.http.request.timeout = 0

## Connection time-out time, used during the initial request
## when the client is connecting to the server
## auth.http.request.connect_timout = 0

## Re-send http reuqest times
auth.http.request.retry_times = 3

## The interval for re-sending the http request
auth.http.request.retry_interval = 1s

## The 'Exponential Backoff' mechanism for re-sending request. The actually
## re-send time interval is `interval * backoff ^ times`
auth.http.request.retry_backoff = 2.0

Setup the Auth URL and parameters:

## Variables: %u = username, %c = clientid, %a = ipaddress, %P = password, %t = topic

auth.http.auth_req = http://127.0.0.1:8080/mqtt/auth
auth.http.auth_req.method = post
auth.http.auth_req.params = clientid=%c,username=%u,password=%P

Setup the Super User URL and parameters:

auth.http.super_req = http://127.0.0.1:8080/mqtt/superuser
auth.http.super_req.method = post
auth.http.super_req.params = clientid=%c,username=%u

Setup the ACL URL and parameters:

## 'access' parameter: sub = 1, pub = 2
auth.http.acl_req = http://127.0.0.1:8080/mqtt/acl
auth.http.acl_req.method = get
auth.http.acl_req.params = access=%A,username=%u,clientid=%c,ipaddr=%a,topic=%t

Design of HTTP Auth and ACL server API:

If Auth/ACL sucesses, API returns 200

If Auth/ACL fails, API return 4xx

Load HTTP Auth/ACL plugin:

./bin/emqx_ctl plugins load emqx_auth_http

MySQL Auth/ACL Plugin¶

Create MQTT users' ACL database, and configure the ACL and Auth queries in the emqx_auth_mysql.conf:

MQTT Auth User List¶

CREATE TABLE `mqtt_user` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `username` varchar(100) DEFAULT NULL,
  `password` varchar(100) DEFAULT NULL,
  `salt` varchar(40) DEFAULT NULL,
  `is_superuser` tinyint(1) DEFAULT 0,
  `created` datetime DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `mqtt_username` (`username`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;

注解

User can define the user list table and configure it in the auth_query statement.

MQTT Access Control List¶

CREATE TABLE `mqtt_acl` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `allow` int(1) DEFAULT NULL COMMENT '0: deny, 1: allow',
  `ipaddr` varchar(60) DEFAULT NULL COMMENT 'IpAddress',
  `username` varchar(100) DEFAULT NULL COMMENT 'Username',
  `clientid` varchar(100) DEFAULT NULL COMMENT 'ClientId',
  `access` int(2) NOT NULL COMMENT '1: subscribe, 2: publish, 3: pubsub',
  `topic` varchar(100) NOT NULL DEFAULT '' COMMENT 'Topic Filter',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

INSERT INTO `mqtt_acl` (`id`, `allow`, `ipaddr`, `username`, `clientid`, `access`, `topic`)
VALUES
    (1,1,NULL,'$all',NULL,2,'#'),
    (2,0,NULL,'$all',NULL,1,'$SYS/#'),
    (3,0,NULL,'$all',NULL,1,'eq #'),
    (4,1,'127.0.0.1',NULL,NULL,2,'$SYS/#'),
    (5,1,'127.0.0.1',NULL,NULL,2,'#'),
    (6,1,NULL,'dashboard',NULL,1,'$SYS/#');

MySQL Server Address¶

## MySQL Server
auth.mysql.server = 127.0.0.1:3306

## MySQL Pool Size
auth.mysql.pool = 8

## MySQL Username
## auth.mysql.username =

## MySQL Password
## auth.mysql.password =

## MySQL Database
auth.mysql.database = mqtt

## MySQL query timeout
## auth.mysql.query_timeout = 5s

Configure MySQL Auth Query Statement¶

## Authentication query
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
##
auth.mysql.auth_query = select password from mqtt_user where username = '%u' limit 1
## auth.mysql.auth_query = select password_hash as password from mqtt_user where username = '%u' limit 1

## Password hash: plain | md5 | sha | sha256 | bcrypt
auth.mysql.password_hash = sha256

## sha256 with salt prefix
## auth.mysql.password_hash = salt,sha256

## bcrypt with salt only prefix
## auth.mysql.password_hash = salt,bcrypt

## sha256 with salt suffix
## auth.mysql.password_hash = sha256,salt

## pbkdf2 with macfun iterations dklen
## macfun: md4, md5, ripemd160, sha, sha224, sha256, sha384, sha512
## auth.mysql.password_hash = pbkdf2,sha256,1000,20

## Superuser query
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
auth.mysql.super_query = select is_superuser from mqtt_user where username = '%u' limit 1

Configure MySQL ACL Query Statement¶

## ACL query
##
## Variables:
##  - %a: ipaddr
##  - %u: username
##  - %c: clientid
auth.mysql.acl_query = select allow, ipaddr, username, clientid, access, topic from mqtt_acl where ipaddr = '%a' or username = '%u' or username = '$all' or clientid = '%c'

Load MySQL Auth Plugin¶

./bin/emqx_ctl plugins load emqx_auth_mysql

PostgreSQL Auth/ACL Plugin¶

Create MQTT users' ACL tables, and configure Auth, ACL queries in the emqx_auth_pgsql.conf:

PostgreSQL MQTT User Table¶

CREATE TABLE mqtt_user (
  id SERIAL primary key,
  is_superuser boolean,
  username character varying(100),
  password character varying(100),
  salt character varying(40)
);

注解

User can define the user list table and configure it in the auth_query statement.

PostgreSQL MQTT ACL Table¶

CREATE TABLE mqtt_acl (
  id SERIAL primary key,
  allow integer,
  ipaddr character varying(60),
  username character varying(100),
  clientid character varying(100),
  access  integer,
  topic character varying(100)
);

INSERT INTO mqtt_acl (id, allow, ipaddr, username, clientid, access, topic)
VALUES
    (1,1,NULL,'$all',NULL,2,'#'),
    (2,0,NULL,'$all',NULL,1,'$SYS/#'),
    (3,0,NULL,'$all',NULL,1,'eq #'),
    (4,1,'127.0.0.1',NULL,NULL,2,'$SYS/#'),
    (5,1,'127.0.0.1',NULL,NULL,2,'#'),
    (6,1,NULL,'dashboard',NULL,1,'$SYS/#');

PostgreSQL Server Address¶

## PostgreSQL Server
auth.pgsql.server = 127.0.0.1:5432

## PostgreSQL pool size
auth.pgsql.pool = 8

## PostgreSQL username
auth.pgsql.username = root

## PostgreSQL password
#auth.pgsql.password =

## PostgreSQL database
auth.pgsql.database = mqtt

## PostgreSQL database encoding
auth.pgsql.encoding = utf8

## Whether to enable SSL connection
auth.pgsql.ssl = false

## SSL keyfile
## auth.pgsql.ssl_opts.keyfile =

## SSL certfile
## auth.pgsql.ssl_opts.certfile =

## SSL cacertfile
## auth.pgsql.ssl_opts.cacertfile =

Configure PostgreSQL Auth Query Statement¶

## Authentication query
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
auth.pgsql.auth_query = select password from mqtt_user where username = '%u' limit 1

## Password hash: plain | md5 | sha | sha256 | bcrypt
auth.pgsql.password_hash = sha256

## sha256 with salt prefix
## auth.pgsql.password_hash = salt,sha256

## sha256 with salt suffix
## auth.pgsql.password_hash = sha256,salt

## bcrypt with salt prefix
## auth.pgsql.password_hash = salt,bcrypt

## pbkdf2 with macfun iterations dklen
## macfun: md4, md5, ripemd160, sha, sha224, sha256, sha384, sha512
## auth.pgsql.password_hash = pbkdf2,sha256,1000,20

## Superuser query
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
auth.pgsql.super_query = select is_superuser from mqtt_user where username = '%u' limit 1

Configure PostgreSQL ACL Query Statement¶

## ACL query. Comment this query, the ACL will be disabled
##
## Variables:
##  - %a: ipaddress
##  - %u: username
##  - %c: clientid
auth.pgsql.acl_query = select allow, ipaddr, username, clientid, access, topic from mqtt_acl where ipaddr = '%a' or username = '%u' or username = '$all' or clientid = '%c'

Load PostgreSQL Auth Plugin¶

./bin/emqx_ctl plugins load emqx_auth_pgsql

Redis/ACL Auth Plugin¶

Config file: emqx_auth_redis.conf:

Redis Server Address¶

## Redis Server cluster type: single | sentinel | cluster
auth.redis.type = single

## Redis server address
auth.redis.server = 127.0.0.1:6379

## Redis sentinel cluster name.
## auth.redis.sentinel = mymaster

## Redis pool size.
auth.redis.pool = 8

## Redis database no.
auth.redis.database = 0

## Redis password
## auth.redis.password =

## Redis query timeout
## auth.redis.query_timeout = 5s

Configure Auth Query Command¶

## Authentication query command
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
auth.redis.auth_cmd = HMGET mqtt_user:%u password

## Password hash: plain | md5 | sha | sha256 | bcrypt
auth.redis.password_hash = plain

## sha256 with salt prefix
## auth.redis.password_hash = salt,sha256

## sha256 with salt suffix
## auth.redis.password_hash = sha256,salt

## bcrypt with salt prefix
## auth.redis.password_hash = salt,bcrypt

## pbkdf2 with macfun iterations dklen
## macfun: md4, md5, ripemd160, sha, sha224, sha256, sha384, sha512
## auth.redis.password_hash = pbkdf2,sha256,1000,20

## Superuser query command
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
auth.redis.super_cmd = HGET mqtt_user:%u is_superuser

Configure ACL Query Command¶

## ACL Query Command
##
## Variables:
##  - %u: username
##  - %c: clientid
auth.redis.acl_cmd = HGETALL mqtt_acl:%u

Redis Authed Users Hash¶

By default, Hash is used to store Authed users:

HSET mqtt_user:<username> is_superuser 1
HSET mqtt_user:<username> password "passwd"

Redis ACL Rules Hash¶

By default, Hash is used to store ACL rules:

HSET mqtt_acl:<username> topic1 1
HSET mqtt_acl:<username> topic2 2
HSET mqtt_acl:<username> topic3 3

注解

1: subscribe, 2: publish, 3: pubsub

Load Redis Auth Plugin¶

./bin/emqx_ctl plugins load emqx_auth_redis

MongoDB Auth/ACL Plugin¶

Configure MongoDB, MQTT users and ACL Collection in the emqx_auth_mongo.conf:

MongoDB Server¶

## MongoDB Topology Type: single | unknown | sharded | rs
auth.mongo.type = single

## The set name if type is rs
## auth.mongo.rs_set_name =

## MongoDB server list.
auth.mongo.server = 127.0.0.1:27017

## MongoDB pool size
auth.mongo.pool = 8

## MongoDB login user
## auth.mongo.login =

## MongoDB password
## auth.mongo.password =

## MongoDB AuthSource
## auth.mongo.auth_source = admin

## MongoDB database
auth.mongo.database = mqtt

## MongoDB query timeout
## auth.mongo.query_timeout = 5s

## Whether to enable SSL connection
## auth.mongo.ssl = false

## SSL keyfile
## auth.mongo.ssl_opts.keyfile =

## SSL certfile
## auth.mongo.ssl_opts.certfile =

## SSL cacertfile
## auth.mongo.ssl_opts.cacertfile =

## MongoDB write mode
## auth.mongo.w_mode =

## Mongo read mode
## auth.mongo.r_mode =

## MongoDB topology options
auth.mongo.topology.pool_size = 1
auth.mongo.topology.max_overflow = 0
## auth.mongo.topology.overflow_ttl = 1000
## auth.mongo.topology.overflow_check_period = 1000
## auth.mongo.topology.local_threshold_ms = 1000
## auth.mongo.topology.connect_timeout_ms = 20000
## auth.mongo.topology.socket_timeout_ms = 100
## auth.mongo.topology.server_selection_timeout_ms = 30000
## auth.mongo.topology.wait_queue_timeout_ms = 1000
## auth.mongo.topology.heartbeat_frequency_ms = 10000
## auth.mongo.topology.min_heartbeat_frequency_ms = 1000

Configure Auth Query Collection¶

## Authentication query
auth.mongo.auth_query.collection = mqtt_user

## password with salt prefix
## auth.mongo.auth_query.password_hash = salt,sha256
auth.mongo.auth_query.password_field = password

## Password hash: plain | md5 | sha | sha256 | bcrypt
auth.mongo.auth_query.password_hash = sha256

## sha256 with salt suffix
## auth.mongo.auth_query.password_hash = sha256,salt

## sha256 with salt prefix
## auth.mongo.auth_query.password_hash = salt,sha256

## bcrypt with salt prefix
## auth.mongo.auth_query.password_hash = salt,bcrypt

## pbkdf2 with macfun iterations dklen
## macfun: md4, md5, ripemd160, sha, sha224, sha256, sha384, sha512
## auth.mongo.auth_query.password_hash = pbkdf2,sha256,1000,20

## Authentication Selector
##
## Variables:
##  - %u: username
##  - %c: clientid
##  - %C: common name of client TLS cert
##  - %d: subject of client TLS cert
auth.mongo.auth_query.selector = username=%u

## Enable superuser query
auth.mongo.super_query = on

auth.mongo.super_query.collection = mqtt_user

auth.mongo.super_query.super_field = is_superuser

#auth.mongo.super_query.selector = username=%u, clientid=%c
auth.mongo.super_query.selector = username=%u

Configure ACL Query Collection¶

## Enable ACL query
auth.mongo.acl_query = on

auth.mongo.acl_query.collection = mqtt_acl

## ACL Selector
##
## Variables:
##  - %u: username
##  - %c: clientid
## auth.mongo.acl_query.selector.3 = clientid=$all

auth.mongo.acl_query.selector = username=%u

MongoDB Database¶

use mqtt
db.createCollection("mqtt_user")
db.createCollection("mqtt_acl")
db.mqtt_user.ensureIndex({"username":1})

注解

The DB name and Collection name are free of choice

Example of a MongoDB User Collection¶

{
    username: "user",
    password: "password hash",
    is_superuser: boolean (true, false),
    created: "datetime"
}

db.mqtt_user.insert({username: "test", password: "password hash", is_superuser: false})
db.mqtt_user:insert({username: "root", is_superuser: true})

Example of a MongoDB ACL Collection¶

{
    username: "username",
    clientid: "clientid",
    publish: ["topic1", "topic2", ...],
    subscribe: ["subtop1", "subtop2", ...],
    pubsub: ["topic/#", "topic1", ...]
}

db.mqtt_acl.insert({username: "test", publish: ["t/1", "t/2"], subscribe: ["user/%u", "client/%c"]})
db.mqtt_acl.insert({username: "admin", pubsub: ["#"]})

Load Mognodb Auth Plugin¶

./bin/emqx_ctl plugins load emqx_auth_mongo

JWT Auth Plugin¶

Configure JWT Auth¶

## HMAC Hash Secret
auth.jwt.secret = emqxsecret

## From where the JWT string can be got
auth.jwt.from = password

## RSA or ECDSA public key file
## auth.jwt.pubkey = etc/certs/jwt_public_key.pem

## Enable to verify claims fields
auth.jwt.verify_claims = off

## The checklist of claims to validate
##
## Variables:
##  - %u: username
##  - %c: clientid
# auth.jwt.verify_claims.username = %u

Load JWT Auth Plugin¶

./bin/emqx_ctl plugins load emqx_auth_jwt
